This page provides a discussion of the Beaglebone Black PinMux and also a listing of the usage of the various PinMux settings related to the P8 and P9 headers. The PinMux section below is clipped from the open source About the Device Tree document available from this website. The listings and downloadable quick reference pdf files (P8 Header, P9 Header) of the PinMux modes have been primarily derived from the pinmux.pdf document available on this website (and others) along with a few enhancements found in the information on Derek Molloy's informative personal website and the the documents supporting his Exploring Beaglebone resource book.
I was motivated to create an adapted version of the PinMux Mode documents because I could not find all of the information I needed on one document and was constantly referring to multiple sources. Once it was made up I thought I might as well make it generally available in the thought that it may be useful to others. If you see any mistakes or ommissions please tell me and I will make the appropriate updates.
Note: I did not write the "pinmux.pdf" document referred to above and it is not at all clear who did. The document contains no reference to an author or originating organization and it is available from multiple open source repositories on the Internet. If you know who originally compiled the information in the pinmux.pdf document please do let me know as I would like to include appropriate attribution.
The CPUs of most modern microcontrollers (including the AM335x 1GHz ARM Cortex-A8 in the Beaglebone Black) are typically built to handle a multitude of requirements. For example, designers of a microcontroller board using that CPU may wish to have multiple GPIO's, SPI, I2C, PWM, A/D, HDMI, USB ports and many others. The architects of the CPU are aware of this and typically implement as many of these devices as they can just to make sure their chip gets selected for people’s designs. These types of device are called On Chip Peripherals (hence the acronym OCP) and although they are called peripherals they are actually built right onto the silicon with the CPU itself.
Each OCP device will probably require one or more physical inputs or outputs on the exterior of the CPU so that the rest of the system can interface with it. The problem with this is that, given all the OCP devices which are implemented, there are many more OCP device I/O requirements than there are pads on the exterior of the CPU.
The designers of the CPU, reasoning that most people implementing their CPU will never need to use all OCP devices at once, have implemented a rather elegant
solution to the problem. They have set things up so that OCP devices share the I/O pads on the CPU. For example, the same I/O pad is alternately used by the
following OCP devices: GPIO0_5
, I2C1 SCL
, mmc2 sdwp
, SPI cs0
and others. There are up to
8 possible usages of any CPU pad and the actual usage is settable at
runtime. The name for the possible usages is called the "mode" (mode0 to mode7).
Be aware of that when you read the documentation that much of the time when you see the word "pin" it is an OCP device I/O line internal to the CPU which is being referenced. It must be noted that sometimes you will see the physical pad on the CPU referred to as a "pin" and once the CPU pad has been routed out and exposed on a header block (the Beaglebone Black P8 or P9 headers for example) it is also commonly referred to as a "pin". The meaning of the word "pin" is just one of those things you have to infer from the context and which can drive you insane if you don't realize what is going on.
The internal CPU component that does the switching of OCP pins onto physical pads is called the PinMux. The PinMux configuration (and hence "pinmux mode") for all OCP devices is set by the Device Tree at boot - although it can also be dynamically adjusted later by software running in kernel mode (usually device drivers) or with Device Tree Overlays. Note that normal user mode software (even running as root) cannot adjust the PinMux mode settings.

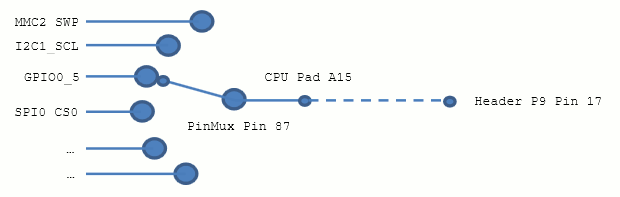

Let's look at how the PinMux works. In concept it can be visualised as a simple switch
Of course the PinMux is not a mechanical rotary switch like that - it is all solid state on the silicon wafer of the CPU - but the effect is the same.
In the example above, if you put PinMux pin 87 in mode 7 you will get GPIO0_5
present on the CPU pad A15 and this has in turn been routed out to pin 17
on the P9 header by the designers of the Beaglebone Black. If you put the PinMux pin in mode 0 then the SPI Port0 CS0
line will be present on pin 17 on
the P9 header. It should be noted that not all CPU pads go to the P8 and P9 headers - some go straight to the USB ports, HDMI port or EMMC memory etc.
depending on what the designers of the Beaglebone Black (not the CPU) wanted to do with them.
It is important to realize that the OCP pins which use any particular CPU pad are hard coded - really hard coded - as in burnt onto the silicon. This
means that any specific OCP device must use a pre-defined set of CPU pads and this cannot be changed. If two OCP devices use the same CPU pad then
you cannot enable both at the same time. You can visualize this in the above diagram by realizing that the PinMux switch cannot both point to GPIO0_5
and SPI0_CS0
at the same time.
The above reason is why you will sometimes see comments like "if you wish to use GPIO_77
you must disable the HDMI video". The reason is that both
of those two OCP devices share the same PinMux pin in different modes. You simply cannot use both at once and there is no way to change this.
Note: OCP devices which are not enabled in the PinMux will still sometimes "work" in the sense that you can access them via their Device Drivers. However, if the PinMux mode is incorrect, any I/O lines that device uses will not be connected to anything.
The table below lists the PinMux modes for the pins exposed on the P8 Header. A downloadable and printable pdf version of this information is also available.
P8 Pin |
Offset |
mode0 |
mode1 |
mode2 |
mode3 |
mode4 |
mode5 |
mode6 |
mode7 |
GPIO # |
P8 Pin |
P8_1 |
GND |
|
|
|
|
|
|
|
|
|
P8_1 |
P8_2 |
GND |
|
|
|
|
|
|
|
|
|
P8_2 |
P8_3 |
0x818 |
gpmc_ad6 |
mmc1_dat6 |
|
|
|
|
|
gpio1_6 |
38 |
P8_3 |
P8_4 |
0x81C |
gpmc_ad7 |
mmc1_dat7 |
|
|
|
|
|
gpio1_7 |
39 |
P8_4 |
P8_5 |
0x808 |
gpmc_ad2 |
mmc1_dat2 |
|
|
|
|
|
gpio1_2 |
34 |
P8_5 |
P8_6 |
0x80C |
gpmc_ad3 |
mmc1_dat3 |
|
|
|
|
|
gpio1_3 |
35 |
P8_6 |
P8_7 |
0x890 |
gpmc_advn_ale |
|
timer4 |
|
|
|
|
gpio2_2 |
66 |
P8_7 |
P8_8 |
0x894 |
gpmc_oen_ren |
|
timer7 |
|
|
|
|
gpio2_3 |
67 |
P8_8 |
P8_9 |
0x89C |
gpmc_be0n_cle |
|
timer5 |
|
|
|
|
gpio2_5 |
69 |
P8_9 |
P8_10 |
0x898 |
gpmc_wen |
|
timer6 |
|
|
|
|
gpio2_4 |
68 |
P8_10 |
P8_11 |
0x834 |
gpmc_ad13 |
lcd_data18 |
mmc1_dat5 |
mmc2_dat1 |
eQEP2B_in |
pr1_mii0_txd1 |
pr1_pru0_pru_r30_15 |
gpio1_13 |
45 |
P8_11 |
P8_12 |
0x830 |
gpmc_ad12 |
lcd_data19 |
mmc1_dat4 |
mmc2_dat0 |
eQEP2A_in |
pr1_mii0_txd2 |
pr1_pru0_pru_r30_14 |
gpio1_12 |
44 |
P8_12 |
P8_13 |
0x824 |
gpmc_ad9 |
lcd_data22 |
mmc1_dat1 |
mmc2_dat5 |
ehrpwm2B |
pr1_mii0_col |
|
gpio0_23 |
23 |
P8_13 |
P8_14 |
0x828 |
gpmc_ad10 |
lcd_data21 |
mmc1_dat2 |
mmc2_dat6 |
ehrpwm2_tripzone_input |
pr1_mii0_txen |
|
gpio0_26 |
26 |
P8_14 |
P8_15 |
0x83C |
gpmc_ad15 |
lcd_data16 |
mmc1_dat7 |
mmc2_dat3 |
eQEP2_strobe |
pr1_ecap0_ecap_capin_apwm_o |
pr1_pru0_pru_r31_15 |
gpio1_15 |
47 |
P8_15 |
P8_16 |
0x838 |
gpmc_ad14 |
lcd_data17 |
mmc1_dat6 |
mmc2_dat2 |
eQEP2_index |
pr1_mii0_txd0 |
pr1_pru0_pru_r31_14 |
gpio1_14 |
46 |
P8_16 |
P8_17 |
0x82C |
gpmc_ad11 |
lcd_data20 |
mmc1_dat3 |
mmc2_dat7 |
ehrpwm0_synco |
pr1_mii0_txd3 |
|
gpio0_27 |
27 |
P8_17 |
P8_18 |
0x88C |
gpmc_clk |
lcd_memory_clk |
gpmc_wait1 |
mmc2_clk |
pr1_mii1_crs |
pr1_mdio_mdclk |
mcasp0_fsr |
gpio2_1 |
65 |
P8_18 |
P8_19 |
0x820 |
gpmc_ad8 |
lcd_data23 |
mmc1_dat0 |
mmc2_dat4 |
ehrpwm2A |
pr1_mii_mt0_clk |
|
gpio0_22 |
22 |
P8_19 |
P8_20 |
0x884 |
gpmc_csn2 |
gpmc_be1n |
mmc1_cmd |
pr1_edio_data_in7 |
pr1_edio_data_out7 |
pr1_pru1_pru_r30_13 |
pr1_pru1_pru_r31_13 |
gpio1_31 |
63 |
P8_20 |
P8_21 |
0x880 |
gpmc_csn1 |
gpmc_clk |
mmc1_clk |
pr1_edio_data_in6 |
pr1_edio_data_out6 |
pr1_pru1_pru_r30_12 |
pr1_pru1_pru_r31_12 |
gpio1_30 |
62 |
P8_21 |
P8_22 |
0x814 |
gpmc_ad5 |
mmc1_dat5 |
|
|
|
|
|
gpio1_5 |
37 |
P8_22 |
P8_23 |
0x810 |
gpmc_ad4 |
mmc1_dat4 |
|
|
|
|
|
gpio1_4 |
36 |
P8_23 |
P8_24 |
0x804 |
gpmc_ad1 |
mmc1_dat1 |
|
|
|
|
|
gpio1_1 |
33 |
P8_24 |
P8_25 |
0x800 |
gpmc_ad0 |
mmc1_dat0 |
|
|
|
|
|
gpio1_0 |
32 |
P8_25 |
P8_26 |
0x87C |
gpmc_csn0 |
|
|
|
|
|
|
gpio1_29 |
61 |
P8_26 |
P8_27 |
0x8E0 |
lcd_vsync |
gpmc_a8 |
gpmc_a1 |
pr1_edio_data_in2 |
pr1_edio_data_out2 |
pr1_pru1_pru_r30_8 |
pr1_pru1_pru_r31_8 |
gpio2_22 |
86 |
P8_27 |
P8_28 |
0x8E8 |
lcd_pclk |
gpmc_a10 |
pr1_mii0_crs |
pr1_edio_data_in4 |
pr1_edio_data_out4 |
pr1_pru1_pru_r30_10 |
pr1_pru1_pru_r31_10 |
gpio2_24 |
88 |
P8_28 |
P8_29 |
0x8E4 |
lcd_hsync |
gpmc_a9 |
gpmc_a2 |
pr1_edio_data_in3 |
pr1_edio_data_out3 |
pr1_pru1_pru_r30_9 |
pr1_pru1_pru_r31_9 |
gpio2_23 |
87 |
P8_29 |
P8_30 |
0x8EC |
lcd_ac_bias_en |
gpmc_a11 |
pr1_mii1_crs |
pr1_edio_data_in5 |
pr1_edio_data_out5 |
pr1_pru1_pru_r30_11 |
pr1_pru1_pru_r31_11 |
gpio2_25 |
89 |
P8_30 |
P8_31 |
0x8D8 |
lcd_data14 |
gpmc_a18 |
eQEP1_index |
mcasp0_axr1 |
uart5_rxd |
pr1_mii_mr0_clk |
uart5_ctsn |
gpio0_10 |
10 |
P8_31 |
P8_32 |
0x8DC |
lcd_data15 |
gpmc_a19 |
eQEP1_strobe |
mcasp0_ahclkx |
mcasp0_axr3 |
pr1_mii0_rxdv |
uart5_rtsn |
gpio0_11 |
11 |
P8_32 |
P8_33 |
0x8D4 |
lcd_data13 |
gpmc_a17 |
eQEP1B_in |
mcasp0_fsr |
mcasp0_axr3 |
pr1_mii0_rxer |
uart4_rtsn |
gpio0_9 |
9 |
P8_33 |
P8_34 |
0x8CC |
lcd_data11 |
gpmc_a15 |
ehrpwm1B |
mcasp0_ahclkr |
mcasp0_axr2 |
pr1_mii0_rxd0 |
uart3_rtsn |
gpio2_17 |
81 |
P8_34 |
P8_35 |
0x8D0 |
lcd_data12 |
gpmc_a16 |
eQEP1A_in |
mcasp0_aclkr |
mcasp0_axr2 |
pr1_mii0_rxlink |
uart4_ctsn |
gpio0_8 |
8 |
P8_35 |
P8_36 |
0x8C8 |
lcd_data10 |
gpmc_a14 |
ehrpwm1A |
mcasp0_axr0 |
|
pr1_mii0_rxd1 |
uart3_ctsn |
gpio2_16 |
80 |
P8_36 |
P8_37 |
0x8C0 |
lcd_data8 |
gpmc_a12 |
ehrpwm1_tripzone_input |
mcasp0_aclkx |
uart5_txd |
pr1_mii0_rxd3 |
uart2_ctsn |
gpio2_14 |
78 |
P8_37 |
P8_38 |
0x8C4 |
lcd_data9 |
gpmc_a13 |
ehrpwm0_synco |
mcasp0_fsx |
uart5_rxd |
pr1_mii0_rxd2 |
uart2_rtsn |
gpio2_15 |
79 |
P8_38 |
P8_39 |
0x8B8 |
lcd_data6 |
gpmc_a6 |
pr1_edio_data_in6 |
eQEP2_index |
pr1_edio_data_out6 |
pr1_pru1_pru_r30_6 |
pr1_pru1_pru_r31_6 |
gpio2_12 |
76 |
P8_39 |
P8_40 |
0x8BC |
lcd_data7 |
gpmc_a7 |
pr1_edio_data_in7 |
eQEP2_strobe |
pr1_edio_data_out7 |
pr1_pru1_pru_r30_7 |
pr1_pru1_pru_r31_7 |
gpio2_13 |
77 |
P8_40 |
P8_41 |
0x8B0 |
lcd_data4 |
gpmc_a4 |
pr1_mii0_txd1 |
eQEP2A_in |
|
pr1_pru1_pru_r30_4 |
pr1_pru1_pru_r31_4 |
gpio2_10 |
74 |
P8_41 |
P8_42 |
0x8B4 |
lcd_data5 |
gpmc_a5 |
pr1_mii0_txd0 |
eQEP2B_in |
|
pr1_pru1_pru_r30_5 |
pr1_pru1_pru_r31_5 |
gpio2_11 |
75 |
P8_42 |
P8_43 |
0x8A8 |
lcd_data2 |
gpmc_a2 |
pr1_mii0_txd3 |
ehrpwm2_tripzone_input |
|
pr1_pru1_pru_r30_2 |
pr1_pru1_pru_r31_2 |
gpio2_8 |
72 |
P8_43 |
P8_44 |
0x8AC |
lcd_data3 |
gpmc_a3 |
pr1_mii0_txd2 |
ehrpwm0_synco |
|
pr1_pru1_pru_r30_3 |
pr1_pru1_pru_r31_3 |
gpio2_9 |
73 |
P8_44 |
P8_45 |
0x8A0 |
lcd_data0 |
gpmc_a0 |
pr1_mii_mt0_clk |
ehrpwm2A |
|
pr1_pru1_pru_r30_0 |
pr1_pru1_pru_r31_0 |
gpio2_6 |
70 |
P8_45 |
P8_46 |
0x8A4 |
lcd_data1 |
gpmc_a1 |
pr1_mii0_txen |
ehrpwm2B |
|
pr1_pru1_pru_r30_1 |
pr1_pru1_pru_r31_1 |
gpio2_7 |
71 |
P8_46 |
P8 Pin |
Offset |
mode0 |
mode1 |
mode2 |
mode3 |
mode4 |
mode5 |
mode6 |
mode7 |
GPIO # |
P8 Pin |
The table below lists the PinMux modes for the pins exposed on the P9 Header. A downloadable and printable pdf version of this information is also available.
P9 Pin |
Offset |
mode0 |
mode1 |
mode2 |
mode3 |
mode4 |
mode5 |
mode6 |
mode7 |
GPIO # |
P9 Pin. |
P9_1 |
GND |
|
|
|
|
|
|
|
|
|
P9_1 |
P9_2 |
GND |
|
|
|
|
|
|
|
|
|
P9_2 |
P9_3 |
3.3V |
|
|
|
|
|
|
|
|
|
P9_3 |
P9_4 |
3.3V |
|
|
|
|
|
|
|
|
|
P9_4 |
P9_5 |
VDD_5V |
|
|
|
|
|
|
|
|
|
P9_5 |
P9_6 |
VDD_5V |
|
|
|
|
|
|
|
|
|
P9_6 |
P9_7 |
SYS_5V |
|
|
|
|
|
|
|
|
|
P9_7 |
P9_8 |
SYS_5V |
|
|
|
|
|
|
|
|
|
P9_8 |
P9_9 |
PWR_BUT |
|
|
|
|
|
|
|
|
|
P9_9 |
P9_10 |
|
Reset_Out |
|
|
|
|
|
|
|
|
P9_10 |
P9_11 |
0x870 |
gpmc_wait0 |
gmii2_crs |
gpmc_csn4 |
rmii2_crs_dv |
mmc1_sdcd |
pr1_mii1_col |
uart4_rxd |
gpio0_30 |
30 |
P9_11 |
P9_12 |
0x878 |
gpmc_be1n |
gmii2_col |
gpmc_csn6 |
mmc2_dat3 |
gpmc_dir |
pr1_mii1_rxlink |
mcasp0_aclkr |
gpio1_28 |
60 |
P9_12 |
P9_13 |
0x874 |
gpmc_wpn |
gmii2_rxerr |
gpmc_csn5 |
rmii2_rxerr |
mmc2_sdcd |
pr1_mii1_txen |
uart4_txd |
gpio0_31 |
31 |
P9_13 |
P9_14 |
0x848 |
gpmc_a2 |
gmii2_txd3 |
rgmii2_td3 |
mmc2_dat1 |
gpmc_a18 |
pr1_mii1_txd2 |
ehrpwm1A |
gpio1_18 |
50 |
P9_14 |
P9_15 |
0x840 |
gpmc_a0 |
gmii2_txen |
rgmii2_tctl |
rmii2_txen |
gpmc_a16 |
pr1_mii_mt1_clk |
ehrpwm1_tripzone_input |
gpio1_16 |
48 |
P9_15 |
P9_16 |
0x84C |
gpmc_a3 |
gmii2_txd2 |
rgmii2_td2 |
mmc2_dat2 |
gpmc_a19 |
pr1_mii1_txd1 |
ehrpwm1B |
gpio1_19 |
51 |
P9_16 |
P9_17 |
0x95C |
spi0_cs0 |
mmc2_sdwp |
I2C1_SCL |
ehrpwm0_synci |
pr1_uart0_txd |
pr1_edio_data_in1 |
pr1_edio_data_out1 |
gpio0_5 |
5 |
P9_17 |
P9_18 |
0x958 |
spi0_d1 |
mmc1_sdwp |
I2C1_SDA |
ehrpwm0_tripzone_input |
pr1_uart0_rxd |
pr1_edio_data_in0 |
pr1_edio_data_out0 |
gpio0_4 |
4 |
P9_18 |
P9_19 |
0x97C |
uart1_rtsn |
timer5 |
dcan0_rx |
I2C2_SCL |
spi1_cs1 |
pr1_uart0_rts_n |
pr1_edc_latch1_in |
gpio0_13 |
13 |
P9_19 |
P9_20 |
0x978 |
uart1_ctsn |
timer6 |
dcan0_tx |
I2C2_SDA |
spi1_cs0 |
pr1_uart0_cts_n |
pr1_edc_latch0_in |
gpio0_12 |
12 |
P9_20 |
P9_21 |
0x954 |
spi0_d0 |
uart2_txd |
I2C2_SCL |
ehrpwm0B |
pr1_uart0_rts_n |
pr1_edio_latch_in |
EMU3 |
gpio0_3 |
3 |
P9_21 |
P9_22 |
0x950 |
spi0_sclk |
uart2_rxd |
I2C2_SDA |
ehrpwm0A |
pr1_uart0_cts_n |
pr1_edio_sof |
EMU2 |
gpio0_2 |
2 |
P9_22 |
P9_23 |
0x844 |
gpmc_a1 |
gmii2_rxdv |
rgmii2_rctl |
mmc2_dat0 |
gpmc_a17 |
pr1_mii1_txd3 |
ehrpwm0_synco |
gpio1_17 |
49 |
P9_23 |
P9_24 |
0x984 |
uart1_txd |
mmc2_sdwp |
dcan1_rx |
I2C1_SCL |
|
pr1_uart0_txd |
pr1_pru0_pru_r31_16 |
gpio0_15 |
15 |
P9_24 |
P9_25 |
0x9AC |
mcasp0_ahclkx |
eQEP0_strobe |
mcasp0_axr3 |
mcasp1_axr1 |
EMU4 |
pr1_pru0_pru_r30_7 |
pr1_pru0_pru_r31_7 |
gpio3_21 |
117 |
P9_25 |
P9_26 |
0x980 |
uart1_rxd |
mmc1_sdwp |
dcan1_tx |
I2C1_SDA |
|
pr1_uart0_rxd |
pr1_pru1_pru_r31_16 |
gpio0_14 |
14 |
P9_26 |
P9_27 |
0x9A4 |
mcasp0_fsr |
eQEP0B_in |
mcasp0_axr3 |
mcasp1_fsx |
EMU2 |
pr1_pru0_pru_r30_5 |
pr1_pru0_pru_r31_5 |
gpio3_19 |
115 |
P9_27 |
P9_28 |
0x99C |
mcasp0_ahclkr |
ehrpwm0_synci |
mcasp0_axr2 |
spi1_cs0 |
eCAP2_in_PWM2_out |
pr1_pru0_pru_r30_3 |
pr1_pru0_pru_r31_3 |
gpio3_17 |
113 |
P9_28 |
P9_29 |
0x994 |
mcasp0_fsx |
ehrpwm0B |
|
spi1_d0 |
mmc1_sdcd |
pr1_pru0_pru_r30_1 |
pr1_pru0_pru_r31_1 |
gpio3_15 |
111 |
P9_29 |
P9_30 |
0x998 |
mcasp0_axr0 |
ehrpwm0_tripzone_input |
|
spi1_d1 |
mmc2_sdcd |
pr1_pru0_pru_r30_2 |
pr1_pru0_pru_r31_2 |
gpio3_16 |
112 |
P9_30 |
P9_31 |
0x990 |
mcasp0_aclkx |
ehrpwm0A |
|
spi1_sclk |
mmc0_sdcd |
pr1_pru0_pru_r30_0 |
pr1_pru0_pru_r31_0 |
gpio3_14 |
110 |
P9_31 |
P9_32 |
VADC |
|
|
|
|
|
|
|
|
|
P9_32 |
P9_33 |
|
AIN4 |
|
|
|
|
|
|
|
|
P9_33 |
P9_34 |
AGND |
|
|
|
|
|
|
|
|
|
P9_34 |
P9_35 |
|
AIN6 |
|
|
|
|
|
|
|
|
P9_35 |
P9_36 |
|
AIN5 |
|
|
|
|
|
|
|
|
P9_36 |
P9_37 |
|
AIN2 |
|
|
|
|
|
|
|
|
P9_37 |
P9_38 |
|
AIN3 |
|
|
|
|
|
|
|
|
P9_38 |
P9_39 |
|
AIN0 |
|
|
|
|
|
|
|
|
P9_39 |
P9_40 |
|
AIN1 |
|
|
|
|
|
|
|
|
P9_40 |
P9_41 |
0x9B4 |
xdma_event_intr1 |
|
tclkin |
clkout2 |
timer7 |
pr1_pru0_pru_r31_16 |
EMU3 |
gpio0_20 |
20 |
P9_41 |
P9_41.1 |
0x9A8 |
mcasp0_axr1 |
eQEP0_index |
|
mcasp1_axr0 |
EMU3 |
pr1_pru0_pru_r30_6 |
pr1_pru0_pru_r31_6 |
gpio3_20 |
116 |
P9_41.1 |
P9_42 |
0x964 |
eCAP0_in_PWM0_out |
uart3_txd |
spi1_cs1 |
pr1_ecap0_ecap_capin_apwm_o |
spi1_sclk |
mmc0_sdwp |
xdma_event_intr2 |
gpio0_7 |
7 |
P9_42 |
P9_42.1 |
0x9A0 |
mcasp0_aclkr |
eQEP0A_in |
mcasp0_axr2 |
mcasp1_aclkx |
mmc0_sdwp |
pr1_pru0_pru_r30_4 |
pr1_pru0_pru_r31_4 |
gpio3_18 |
114 |
P9_42.1 |
P9_43 |
GND |
|
|
|
|
|
|
|
|
|
P9_43 |
P9_44 |
GND |
|
|
|
|
|
|
|
|
|
P9_44 |
P9_45 |
GND |
|
|
|
|
|
|
|
|
|
P9_45 |
P9_46 |
GND |
|
|
|
|
|
|
|
|
|
P9_46 |
P9 Pin |
Offset |
mode0 |
mode1 |
mode2 |
mode3 |
mode4 |
mode5 |
mode6 |
mode7 |
GPIO # |
P9 Pin. |
The contents of this web page are provided "as is" without any warranty of any kind and without any claim to accuracy. Please be aware that the information provided may be out-of-date, incomplete, erroneous or simply unsuitable for your purposes. Any use you make of the information is entirely at your discretion and any consequences of that use are entirely your responsibility. All source code is provided under the terms of the MIT License.
Various internet resources were used to help understand the workings of the Beaglebone Black. Especially useful were Derek Molloys Beaglebone pages. Thank you Derek!.
