FPath_Ex008: Borrowed Precision

Background

FPath is a project to explore the possibilities of the Feynman Path to Nanotechnology. Essentially this means using tools to make small tools which then make smaller tools. See the main FPath Project page for more details.

The Goal

The target goal of this experiment is to:

Demonstrate that the use of small, common off the shelf (COTS), stepper motor driven linear actuators can form a viable positioning mechanism down to about the 50 micron level - if closed loop feedback is used. This experiment also demonstrates the usage of image recognition techniques to automatically control the movement of a toolhead at the 10 to 100 micron scales. A discussion of the pros, cons and usage considerations of small stepper motors is also presented.

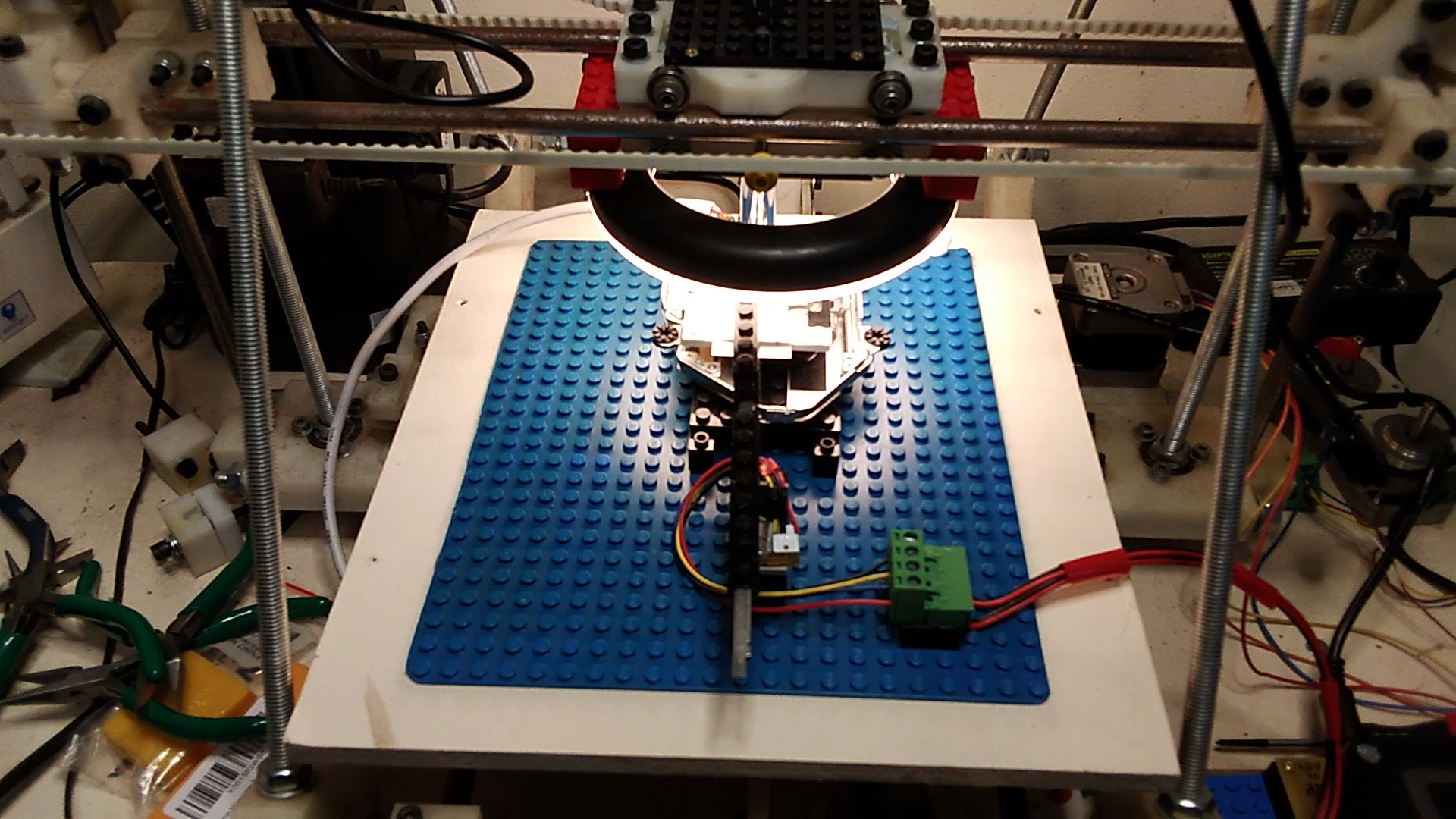

FPath Ex_008 Example Setup

Achieving the Goal

For the purposes of demonstration, experimental apparatus was put together using a sled salvaged from an old DVD drive and two other extremely inexpensive and commonly available stepper driven linear actuators. In keeping with the usual FPath experimental apparatus setup, each stepper motor under test was fitted out with LEGO blocks to simplify their mounting. The drive electronics were composed of a Steggo Electronics Module chain.

Fairly significant changes were made to the Walnut software and this software has been released to the GitHub repo as version 00.02.09 and Commit ID 38341fb.

Below is a specific list of the steps involved in reaching the goal. All of these steps are discussed in considerably more detail in the video which documents this experiment.

  1. Obtain various inexpensive stepper motor driven linear actuators and configure them with LEGO blocks so they can be attached to the existing experimental apparatus.
  2. Implement a lightweight exendable arm so the 10 micron or so movments of the linear actuators can be visually observed, tracked and recorded.
  3. Implement a stage containing a standard microscope calibration slide so the movements of the linear actuators can be measured.
  4. Make changes to the Walnut control software so that various positions on the microscope display can be marked.
  5. Add image recognition routines to the Walnut software so that the position of the horizontal marker strip on the calibration slide can be automatically tracked.
  6. Use Stigmergic Path Following (see FPath_Ex004) closed loop control to automatically move a point on the moveable arm to a fixed point on the experimental bed.
  7. Obtain and record visual results and determine if closed loop control is an effective way of removing errors derived from inaccurate stepper motor linear actuators.

The Result

The experiment was successful. It was demonstrated that closed loop control can drive even very imprecise stepper motor driven micro linear actuators to a precision of around 50 microns.

This experiment was also discussed in a post on the RepRap Blog: Borrowed Precision

This experiment is now complete.

The Future

This FPath project will make use of commonly available micro stepper motor linear actuators in the future. The ultimate objective is for the project to be able to make its own milli-scale actuators. Until that capability is developed, purchased components will have to be used.
